Exemples
Qty (physpyx.qty.Qty, physpyx.quantity.SiunitxQuantity)
ex-qty.py
from physpyx import Qty
with Qty(__file__, "energy") as qty:
G = qty("G") # exporte la constante de la gravitation universelle
R = qty("RTerre", fmt=".0f") # enlève la notation scientifique
m2 = qty("MTerre", fmt=".1e") # affiche 2 chiffres significatifs
m1 = qty(75, "kilogram") # exporte une variable
# exporte une version en joule et un version dans les unités si de base
U = (-G * m1 * m2 / R).fmtex(alt={"base": True})
UkWh = U.fmtex(to="kilowatthour") # exporte en kWh
# le mot clé "energy" donné en option de Qty permet de convertir des masses
# en énergie
m2H = qty("m2H") # les masses des nucléides sont par défaut en amu
c = qty("c", to="kilometer per second", fmt=".3e") # converti en km/s
E = m2H.fmtex(to="megaelectronvolt", fmt=".3f")
# possible d'utiliser des vecteurs
i = qty(2, "milliampere", alt=True) # exporte une variable et sa version SI
L = qty([0, 2, -3], "kilometer") # exporte un vecteur
B = qty([1, 0, 2], "tesla") # exporte un vecteur
F = i * L.cross(B) # peut faire des opérations sur des vecteurs
# possible d'utiliser des centimes et des francs suisses
cost = qty("ct_per_kwh") # peut définir des constante personnelles
bill = (cost * U).fmtex(to="chf")
Code généré automatiquement par Phys\(PyX\)
ex-qty.pyx
\ExplSyntaxOn
\prop_gset_from_keyval:Nn \g_physpyx_pty_prop {
{G} = {\qty{6.67e-11}{\newton\meter\squared\per\kilogram\squared}},
{R} = {\qty{6371000}{\meter}},
{m2} = {\qty{6.0e+24}{\kilogram}},
{m1} = {\qty{75}{\kilogram}},
{U} = {\qty{-4.69239e+09}{\joule}},
{U_alt} = {\qty{-4.69239e+09}{\kilogram\meter\squared\per\second\squared}},
{UkWh} = {\qty{-1303.44}{\kilo\watthour}},
{m2H} = {\qty{2.014102}{\amu}},
{c} = {\qty{2.998e+05}{\kilo\meter\per\second}},
{E} = {\qty{1876.124}{\mega\electronvolt}},
{i} = {\qty{2}{\milli\ampere}},
{i_alt} = {\qty{0.002}{\ampere}},
{L} = {\begin{pmatrix}\num{0}\\\num{2}\\\num{-3}\end{pmatrix}\unit{\kilo\meter}},
{B} = {\begin{pmatrix}\num{1}\\\num{0}\\\num{2}\end{pmatrix}\unit{\tesla}},
{F} = {\begin{pmatrix}\num{8}\\\num{-6}\\\num{-4}\end{pmatrix}\unit{\newton}},
{cost} = {\qty{30}{\ct\per\kilo\watthour}},
{bill} = {\qty{-391.032}{\chf}},
}
\ExplSyntaxOff
Code \(\LaTeX\) minimal
ex-qty.tex
\documentclass{article}
\usepackage{amsmath}
\usepackage[
per-mode = fraction,
exponent-product = \cdot,
uncertainty-mode = separate,
]{siunitx} % le rendu des unités se configure dans siunitx
\DeclareSIUnit{\amu}{\atomicmassunit}
\DeclareSIUnit{\watthour}{Wh}
\DeclareSIUnit{\ct}{ct}
\DeclareSIUnit{\chf}{CHF}
\ExplSyntaxOn
\prop_new:N \g_physpyx_pty_prop
\NewDocumentCommand{\pyx}{sm}{
\IfBooleanTF{#1}
{ \prop_get:NnNT \g_physpyx_pty_prop {#2 _alt} \l_tmpa_tl { \tl_use:N \l_tmpa_tl } }
{ \prop_get:NnNT \g_physpyx_pty_prop {#2} \l_tmpa_tl { \tl_use:N \l_tmpa_tl } }
}
\file_input:n {ex-qty.pyx}
\ExplSyntaxOff
\begin{document}
\pagestyle{empty}

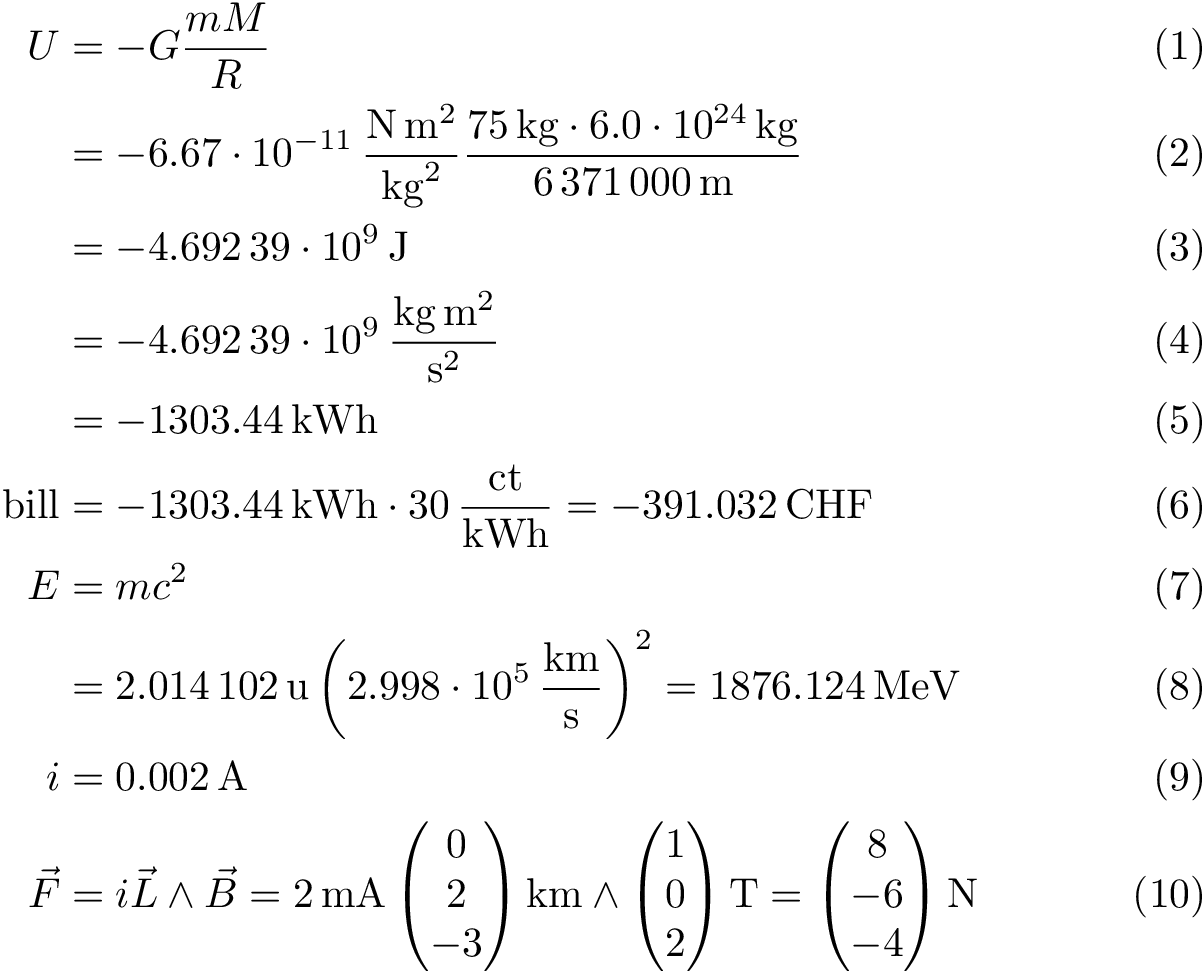

\begin{align}
U
&= -G\frac{mM}{R} \\
&= -\pyx{G}\frac{\pyx{m1}\cdot\pyx{m2}}{\pyx{R}} \\
&= \pyx{U} \\
&= \pyx*{U} \\
&= \pyx{UkWh} \\
\text{bill} &= \pyx{UkWh}\cdot\pyx{cost} = \pyx{bill} \\
E
&= mc^2 \\
&= \pyx{m2H}\left(\pyx{c}\right)^2 = \pyx{E} \\
i &= \pyx*{i} \\
\vec{F}
&= i\vec{L}\wedge\vec{B}
= \pyx{i}\pyx{L}\wedge\pyx{B}
= \pyx{F}
\end{align}
\end{document}
NuclideTable (physpyx.nuclides.NuclideTable, physpyx.physpyx.PhysPyX)
ex-nuclides.py
from physpyx import NuclideTable, PhysPyX
nt = NuclideTable()

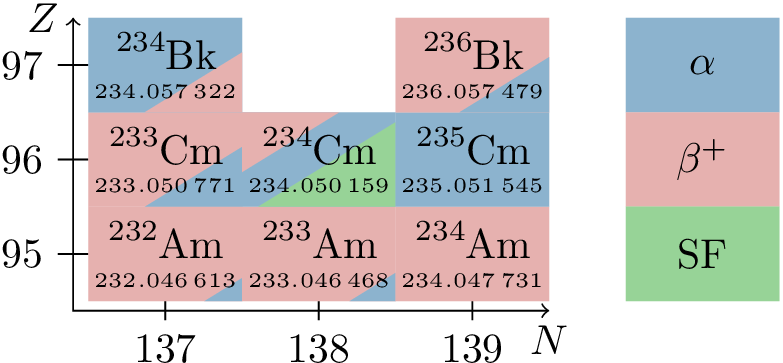

nuclides = nt.range(N=range(137, 140), Z=range(95, 98))
with PhysPyX(__file__) as tex:
with tex.begin("tikzpicture", o=["xscale=1.3, yscale=0.8"]):
tex(NuclideTable.define_colors())
tex(NuclideTable.axis(nuclides))
tex(NuclideTable.legend(nuclides, x=140.5, y=97, vertical=True))
for nuclide in nuclides:
tex(nuclide.to_tex(with_symbol=True, with_decay=False, with_mass=True))
Code généré automatiquement par Phys\(PyX\)
ex-nuclides.pyx
\begin{tikzpicture}[xscale=1.3, yscale=0.8]
\definecolor{3f80ae}{HTML}{3f80ae}
\definecolor{52b552}{HTML}{52b552}
\definecolor{52b552}{HTML}{52b552}
\definecolor{7d7ad6}{HTML}{7d7ad6}
\definecolor{d67d7a}{HTML}{d67d7a}
\definecolor{ca5753}{HTML}{ca5753}
\definecolor{c7522a}{HTML}{c7522a}
\definecolor{e5c185}{HTML}{e5c185}
\definecolor{fbf2c4}{HTML}{fbf2c4}
\definecolor{74a892}{HTML}{74a892}
\definecolor{52b552}{HTML}{52b552}
\definecolor{a0a0a0}{HTML}{a0a0a0}
\draw[<->] (136.9, 98) node[left]{$Z$} |- (140, 94.9) node[below]{$N$};
\draw (137.5, 95) -- ++(0,-0.2) node[below]{$137$};
\draw (138.5, 95) -- ++(0,-0.2) node[below]{$138$};
\draw (139.5, 95) -- ++(0,-0.2) node[below]{$139$};
\draw (137, 95.5) -- ++(-0.2,0) node[left]{$95$};
\draw (137, 96.5) -- ++(-0.2,0) node[left]{$96$};
\draw (137, 97.5) -- ++(-0.2,0) node[left]{$97$};
\fill[color=3f80ae!60] (140.5, 97) rectangle ++(1, 1) node[midway, black]{$\alpha$};
\fill[color=d67d7a!60] (140.5, 96) rectangle ++(1, 1) node[midway, black]{$\beta^+$};
\fill[color=52b552!60] (140.5, 95) rectangle ++(1, 1) node[midway, black]{SF};
\fill[color=d67d7a!60] (137, 95) rectangle ++(1,1);
\fill[color=3f80ae!60] (138, 95) -- (138, 95.24494897427832) -- (137.75505102572168, 95) -- cycle;
\node[anchor=north] at (137.5, 96) {\ce{^232Am}};
\node[anchor=south] at (137.5, 95) {\tiny{\num{232.046613}}};
\fill[color=d67d7a!60] (137, 96) rectangle ++(1,1);
\fill[color=3f80ae!60] (138, 96) -- (138, 96.63245553203367) -- (137.36754446796633, 96) -- cycle;
\node[anchor=north] at (137.5, 97) {\ce{^233Cm}};
\node[anchor=south] at (137.5, 96) {\tiny{\num{233.050771}}};
\fill[color=3f80ae!60] (137, 97) rectangle ++(1,1);
\fill[color=d67d7a!60] (138, 97) -- (138, 97.63245553203367) -- (137.36754446796633, 97) -- cycle;
\node[anchor=north] at (137.5, 98) {\ce{^234Bk}};
\node[anchor=south] at (137.5, 97) {\tiny{\num{234.057322}}};
\fill[color=d67d7a!60] (138, 95) rectangle ++(1,1);
\fill[color=3f80ae!60] (139, 95) -- (139, 95.3) -- (138.7, 95) -- cycle;
\node[anchor=north] at (138.5, 96) {\ce{^233Am}};
\node[anchor=south] at (138.5, 95) {\tiny{\num{233.046468}}};
\fill[color=3f80ae!60] (138, 96) rectangle ++(1,1);
\fill[color=52b552!60] (139, 96) -- (139, 96.89442719099992) -- (138.10557280900008, 96) -- cycle;
\fill[color=d67d7a!60] (138, 97) -- (138, 96.36754446796633) -- (138.63245553203367, 97) -- cycle;
\node[anchor=north] at (138.5, 97) {\ce{^234Cm}};
\node[anchor=south] at (138.5, 96) {\tiny{\num{234.050159}}};
\fill[color=d67d7a!60] (139, 95) rectangle ++(1, 1);
\node[anchor=north] at (139.5, 96) {\ce{^234Am}};
\node[anchor=south] at (139.5, 95) {\tiny{\num{234.047731}}};
\fill[color=3f80ae!60] (139, 96) rectangle ++(1, 1);
\node[anchor=north] at (139.5, 97) {\ce{^235Cm}};
\node[anchor=south] at (139.5, 96) {\tiny{\num{235.051545}}};
\fill[color=d67d7a!60] (139, 97) rectangle ++(1,1);
\fill[color=3f80ae!60] (140, 97) -- (140, 97.58309518948452) -- (139.41690481051546, 97) -- cycle;
\node[anchor=north] at (139.5, 98) {\ce{^236Bk}};
\node[anchor=south] at (139.5, 97) {\tiny{\num{236.057479}}};
\end{tikzpicture}
Code \(\LaTeX\) minimal
ex-nuclides.tex
\documentclass[tikz]{standalone}
\usepackage{mhchem}
\usepackage{siunitx}
\begin{document}
\input{ex-nuclides.pyx}
\end{document}
Orbit (physpyx.astronomy.Orbit, physpyx.physpyx.PhysPyX)
ex-orbit.py
from physpyx import PhysPyX, Orbit
from physpyx.helper import coord
with PhysPyX(__file__) as tex:
steps = 3000
n_points = 120
every = int(steps / n_points)
with tex.newcommand("OrbitCoordinates"):
tex(coord(x) for x in Orbit(a=4, b=3, mu=3).run(steps=steps, every=every))
